Plot Raw Median Fluorescent Intensity of Pk/Pf/Pv Standard Curve Data

This function gets the standards data and plots the standard curves for antigens in the Pk/Pf/Pv panel.

Usage

plotStds_PkPfPv(sero_data, experiment_name, panel = "panel1")

Arguments

sero_data

Output from `readSeroData()`.

experiment_name

User-input experiment name.

panel

Panel of Pk/Pf/Pv antigens. Default = "panel1" or user provided csv of Antigens and Species.

Value

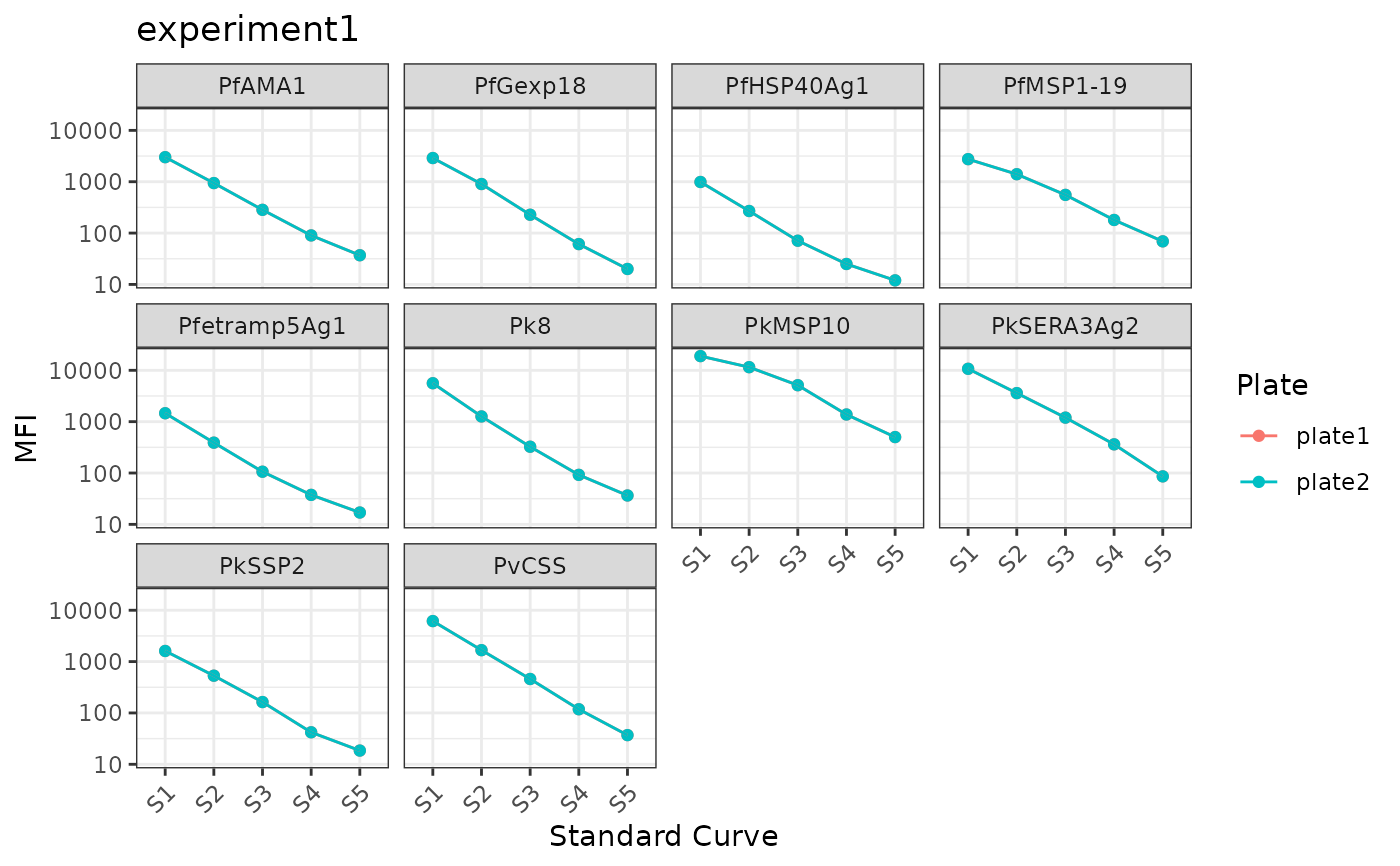

- Dot and line plot of standard curves (S1-S10) - WEHI-acceptable standard curve data on background of plot with user data.

Author

Dionne Argyropoulos

Examples

# \donttest{
# Example demonstrating how to process bead count data.
# These files are included in the SeroTrackR package under inst/extdata.

your_raw_data <- c(
   system.file("extdata", "example_MAGPIX_pk_5std_plate1.csv", package = "SeroTrackR"),
   system.file("extdata", "example_MAGPIX_pk_5std_plate2.csv", package = "SeroTrackR")
)

# Read in raw MAGPIX data
sero_data <- readSeroData(
  raw_data = your_raw_data,
  platform = "magpix"
)
#> PASS: File example_magpix_pk_5std_plate1.csv successfully validated.
#> PASS: File example_magpix_pk_5std_plate2.csv successfully validated.

# Plot Standards
plotStds_PkPfPv(
  sero_data = sero_data,
  experiment_name = "experiment1",
  panel = "panel1"
)


# }
